Articulated Adjustable Foot Type 3

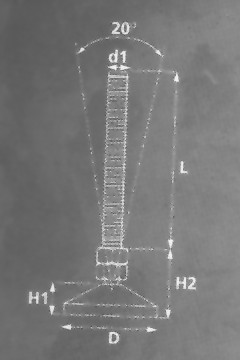

Articulated adjustable foot design type 3.jpg (13665 bytes)

articulated adjustable foot type 3.jpg (7830 bytes)

Fastenright Limited Your Uk Source For Fixings & Fasteners.

Technical Data & Available Sizes

Click on the links below to view other product types

Articulated Adjustable Foot Type 1

Articulated Adjustable Foot Type 2

Thread inserts are available to suit these feet.

Click HERE to view the 'Threaded Inserts' range

SIZES AVAILABLE

STAINLESS STEEL
PART NO D d1 H1 H2 L
M03-1 105 M16 30 60 155
M03-2 105 M16 30 60 205
M03-3 105 M20 30 65 150
M03-4 105 M20 30 65 200
M03-5 105 M24 30 62 152
M03-6 105 M24 30 62 200
Black or White Polypropylene Base - Conical Or Bolt Down
ZINC PLATED MILD STEEL
PART NO D d1 H1 H2 L
M08-1 105 M16 30 58 155
M08-2 105 M16 30 58 205
M08-3 105 M20 30 60 155
M08-4 105 M20 30 60 205
M08-5 105 M24 30 59 210
Black or White Polypropylene Base - Conical Or Bolt Down
