PHILIDAS® NUT RANGE
industrial nut are an all metal locking hexagon nut designed to have a friction
grip between the nut and the bolt threads.
The Philidas® industrial nut is the most versatile self-locking nut in the Philidas® range and is a popular choice within many industrial
Philidas industrial nuts are an all-metal one-piece nut with a collar above the hexagon, with two slots in the same plane cut in
the collar and the metal above the slots set to de-pitch the threads.
The all-metal Philidas® industrial nut is suitable for use in high or low temperature conditions and the locking
performance is unaffected by
oil, petrol or other liquids and vapours.
The Philidas® industrial nut has low prevailing torque and can be applied on multiple occasions (around 5 applications

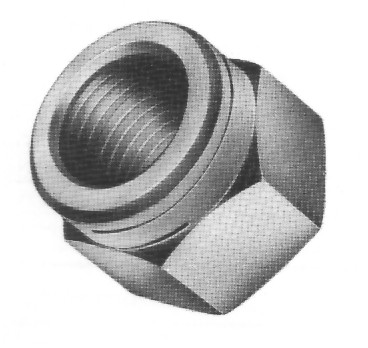

PHILIDAS® TURRET NUT
designed for the aircraft industry, the Philidas®
Turret Nut is now available for commercial use and is the
use within the rail industry.
Advantages of the Philidas® Turret Nut include:
Philidas® Turret Nut has Lower prevailing torque than Philidas® Industrial type
Philidas® Turret Nut has a higher re-use factor than Philidas® Industrial type
Philidas® Turret Nut is unaffected by chemicals or temperature
Philidas® Turret Nut can be assembled with the locking element leading onto the male thread
The Philidas® Turret Nut is available in: ISO coarse, UNF, UNC, BA, BSF, AND BSW threads ( 2.5mm to 52mm, 4-40 (6BA) to 3 in)
PHILIDAS® COMBY NUT
Philidas® Comby Nut is available in self-locking and non-locking form
Philidas® Comby Nut combinations of nut body variations to washer styles are numerous
Philidas® Comby Nut simplifies and speeds assembly while ensuring correct washer is fitted
Philidas® Comby Nut facilitates automatic assembly where separate items, especially washers would be difficult to orientate, feed & locate.

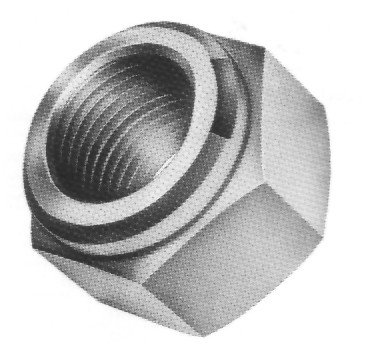

PHILIDAS® MARK V NUT
Philidas® Mark V Nut is a low cost production most suited for high volume application
Philidas® Mark V Nut has a relatively high prevailing torque obtained by two-point deforming for consistent characteristics to BS4929
With the Philidas® Mark V Nut all threads are load bearing
Mark V Nut is available in
ISO course, UNF,
UNC, BA, BSF, & BSW threads
(4mm - 36mm, 6-32 (2BA) - 1.5in

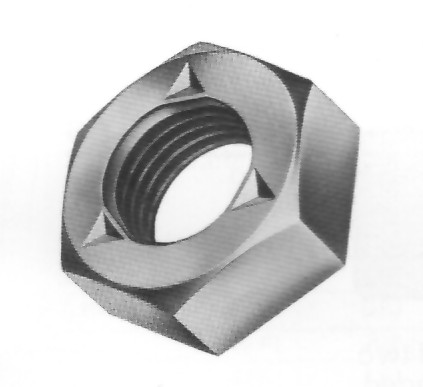

PHILIDAS® TRILOCK NUT
Philidas® Trilock Nut Can be very thin to suit applications where height is at a premium
Philidas® Trilock Nut has three or six point deflection of top threads depending on size and torque requirements
